Invoice layout bugs in Prestashop 1.5.2.0

papagino · November 25, 2012

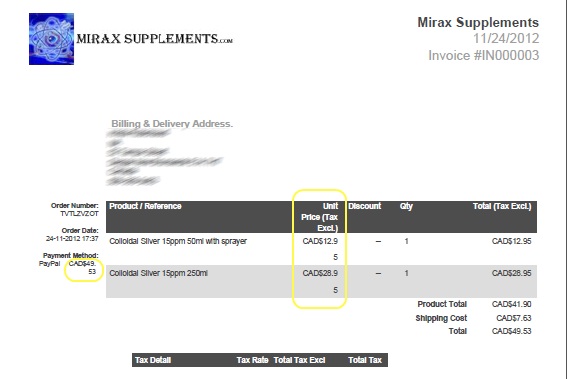

I have a new shop with Prestashop and noticed a bug with the invoice layout.

Please see attach and show me how to fix the problems with the layout.

Cheers

Dan

Dh42 · November 25, 2012

You would have to use css to give the columns a greater width. I cannot tell which element you would have to edit, post a link.

papagino · November 25, 2012

Thanks for your reply Dh42, I have PrestaShop 1.5.2.0, would the file that I have to modify be "invoice-b2b.tpl" ?

(I am using Invoice B2B in my back office)

If yes, can you give me a hint what lines to modify?

Here is the code for my invoice-b2b.tpl

{*
* 2007-2012 PrestaShop
*
* NOTICE OF LICENSE
*
* This source file is subject to the Academic Free License (AFL 3.0)
* that is bundled with this package in the file LICENSE.txt.
* It is also available through the world-wide-web at this URL:
* http://opensource.org/licenses/afl-3.0.php
* If you did not receive a copy of the license and are unable to
* obtain it through the world-wide-web, please send an email
* to [email protected] so we can send you a copy immediately.
*
* DISCLAIMER
*
* Do not edit or add to this file if you wish to upgrade PrestaShop to newer
* versions in the future. If you wish to customize PrestaShop for your
* needs please refer to http://www.prestashop.com for more information.
*
*  @author PrestaShop SA <[email protected]>
*  @copyright  2007-2012 PrestaShop SA
*  @version  Release: $Revision: 6753 $
*  @license    http://opensource.org/licenses/afl-3.0.php  Academic Free License (AFL 3.0)
*  International Registered Trademark & Property of PrestaShop SA
*}
<div style="font-size: 8pt; color: #444">
<table>
<tr><td> </td></tr>
</table>
<!-- ADDRESSES -->
<table style="width: 100%">
<tr>
 <td style="width: 15%"></td>
 <td style="width: 85%">
  {if !empty($delivery_address)}
   <table style="width: 100%">
 <tr>
  <td style="width: 50%">
   <span style="font-weight: bold; font-size: 10pt; color: #9E9F9E">{l s='Delivery Address' pdf='true'}</span><br />
    {$delivery_address}
  </td>
  <td style="width: 50%">
   <span style="font-weight: bold; font-size: 10pt; color: #9E9F9E">{l s='Billing Address' pdf='true'}</span><br />
    {$invoice_address}
  </td>
 </tr>
   </table>
  {else}
   <table style="width: 100%">
 <tr>
  <td style="width: 50%">
   <span style="font-weight: bold; font-size: 10pt; color: #9E9F9E">{l s='Billing & Delivery Address.' pdf='true'}</span><br />
    {$invoice_address}
  </td>
  <td style="width: 50%">
  </td>
 </tr>
   </table>
  {/if}
 </td>
</tr>
</table>
<!-- / ADDRESSES -->
<div style="line-height: 1pt"> </div>
{if $customer->siret or $customer->ape}
<table style="width: 100%">
<tr>
 <td style="width: 15%"></td>
 <td style="width: 85%">
 {if $customer->siret}
 <b>{l s='Company:'}</b> {$customer->company}
 {/if}
 {if $customer->siret}
 <br />
 <b>{l s='SIRET:'}</b> {$customer->siret}
 {/if}
 {if $customer->ape}
 <br />
 <b>{l s='APE:'}</b> {$customer->ape}
 {/if}
 </td>
 <td style="width: 15%"></td>
</tr>
</table>
<!-- / B2B -->
{/if}
<div style="line-height: 1pt"> </div>
<!-- PRODUCTS TAB -->
<table style="width: 100%">
<tr>
 <td style="width: 15%; padding-right: 7px; text-align: right; vertical-align: top; font-size: 7pt;">
  <!-- CUSTOMER INFORMATIONS -->
  <b>{l s='Order Number:' pdf='true'}</b><br />
  {$order->getUniqReference()}<br />
  <br />
  <b>{l s='Order Date:' pdf='true'}</b><br />
  {$order->date_add|date_format:"%d-%m-%Y %H:%M"}<br />
  <br />
  <b>{l s='Payment Method:' pdf='true'}</b><br />
  <table style="width: 100%;">
  {foreach from=$order_invoice->getOrderPaymentCollection() item=payment}
   <tr>
 <td style="width: 50%">{$payment->payment_method}</td>
 <td style="width: 50%">{displayPrice price=$payment->amount currency=$order->id_currency}</td>
   </tr>
  {foreachelse}
   <tr>
 <td>{l s='No payment'}</td>
   </tr>
  {/foreach}
  </table>
  <br />
  <!-- / CUSTOMER INFORMATIONS -->
 </td>
 <td style="width: 85%; text-align: right">
  <table style="width: 100%; font-size: 8pt;">
   <tr style="line-height:4px;">
 <td style="text-align: left; background-color: #4D4D4D; color: #FFF; padding-left: 10px; font-weight: bold; width: 45%">{l s='Product / Reference' pdf='true'}</td>
			    <!-- unit price tax excluded is mandatory -->
 {if !$tax_excluded_display}
	 <td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 10%">{l s='Unit Price' pdf='true'} <br />{l s='(Tax Excl.)' pdf='true'}</td>
    {/if}
    <td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 10%">{l s='Unit Price' pdf='true'}</td>
    <td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 10%">{l s='Discount' pdf='true'}</td>
 <td style="background-color: #4D4D4D; color: #FFF; text-align: center; font-weight: bold; width: 10%">{l s='Qty' pdf='true'}</td>
 <td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 15%">{l s='Total' pdf='true'}</td>
   </tr>
   {foreach $order_details as $order_detail}
   {cycle values='#FFF,#DDD' assign=bgcolor}
   <tr style="line-height:6px;background-color:{$bgcolor};">
 <td style="text-align: left; width: 45%">{$order_detail.product_name}</td>
			    <!-- unit price tax excluded is mandatory -->
 {if !$tax_excluded_display}
	 <td style="text-align: right; width: 10%">
  {displayPrice currency=$order->id_currency price=$order_detail.unit_price_tax_excl}
				    </td>
 {/if}
 <td style="text-align: right; width: 10%">
 {if $tax_excluded_display}
  {displayPrice currency=$order->id_currency price=$order_detail.unit_price_tax_excl}
 {else}
  {displayPrice currency=$order->id_currency price=$order_detail.unit_price_tax_incl}
 {/if}
 </td>
 <td style="text-align: right; width: 10%">
			    {if (isset($order_detail.reduction_amount) && $order_detail.reduction_amount > 0)}
				    -{displayPrice currency=$order->id_currency price=$order_detail.reduction_amount}
			    {else if (isset($order_detail.reduction_percent) && $order_detail.reduction_percent > 0)}
				    -{$order_detail.reduction_percent}%
			    {else}
			    --
			    {/if}
 </td>
 <td style="text-align: center; width: 10%">{$order_detail.product_quantity}</td>
 <td style="width: 15%; text-align: right;  width: 15%">
 {if $tax_excluded_display}
  {displayPrice currency=$order->id_currency price=$order_detail.total_price_tax_excl}
 {else}
  {displayPrice currency=$order->id_currency price=$order_detail.total_price_tax_incl}
 {/if}
 </td>
   </tr>
 {foreach $order_detail.customizedDatas as $customization}
  <tr style="line-height:6px;background-color:{$bgcolor}; ">
   <td style="line-height:3px; text-align: left; width: 60%; vertical-align: top">
    {foreach $customization.datas as $customization_types}
	 <blockquote>
	 {foreach $customization_types as $customization_infos name=custo_foreach}
	  {$customization_infos.name}: {$customization_infos.value}
	  {if !$smarty.foreach.custo_foreach.last}<br />
	  {else}
	  <div style="line-height:0.4pt"> </div>
	  {/if}
	 {/foreach}
	 </blockquote>
    {/foreach}
   </td>
   <td style="text-align: right; width: 15%"></td>
   <td style="text-align: center; width: 10%; vertical-align: top">({$customization.quantity})</td>
   <td style="width: 15%; text-align: right;"></td>
  </tr>
 {/foreach}
   {/foreach}
  </table>
  <table style="width: 100%">
   {if (($order_invoice->total_paid_tax_incl - $order_invoice->total_paid_tax_excl) > 0)}
   <tr style="line-height:5px;">
 <td style="width: 85%; text-align: right; font-weight: bold">{l s='Product Total (Tax Excl.)' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">{displayPrice currency=$order->id_currency price=$order_invoice->total_products}</td>
   </tr>
   <tr style="line-height:5px;">
 <td style="width: 85%; text-align: right; font-weight: bold">{l s='Product Total (Tax Incl.)' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">{displayPrice currency=$order->id_currency price=$order_invoice->total_products_wt}</td>
   </tr>
   {else}
   <tr style="line-height:5px;">
 <td style="width: 85%; text-align: right; font-weight: bold">{l s='Product Total' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">{displayPrice currency=$order->id_currency price=$order_invoice->total_products}</td>
   </tr>
   {/if}
   {if $order_invoice->total_discount_tax_incl > 0}
   <tr style="line-height:5px;">
 <td style="text-align: right; font-weight: bold">{l s='Total Vouchers' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">-{displayPrice currency=$order->id_currency price=$order_invoice->total_discount_tax_incl}</td>
   </tr>
   {/if}
   {if $order_invoice->total_wrapping_tax_incl > 0}
   <tr style="line-height:5px;">
 <td style="text-align: right; font-weight: bold">{l s='Wrapping Cost' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">
 {if $tax_excluded_display}
  {displayPrice currency=$order->id_currency price=$order_invoice->total_wrapping_tax_excl}
 {else}
  {displayPrice currency=$order->id_currency price=$order_invoice->total_wrapping_tax_incl}
 {/if}
 </td>
   </tr>
   {/if}
   {if $order_invoice->total_shipping_tax_incl > 0}
   <tr style="line-height:5px;">
 <td style="text-align: right; font-weight: bold">{l s='Shipping Cost' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">
 {if $tax_excluded_display}
  {displayPrice currency=$order->id_currency price=$order_invoice->total_shipping_tax_excl}
 {else}
  {displayPrice currency=$order->id_currency price=$order_invoice->total_shipping_tax_incl}
 {/if}
 </td>
   </tr>
   {/if}
   {if ($order_invoice->total_paid_tax_incl - $order_invoice->total_paid_tax_excl) > 0}
   <tr style="line-height:5px;">
 <td style="text-align: right; font-weight: bold">{l s='Total Tax' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">{displayPrice currency=$order->id_currency price=($order_invoice->total_paid_tax_incl - $order_invoice->total_paid_tax_excl)}</td>
   </tr>
   {/if}
   <tr style="line-height:5px;">
 <td style="text-align: right; font-weight: bold">{l s='Total' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">{displayPrice currency=$order->id_currency price=$order_invoice->total_paid_tax_incl}</td>
   </tr>
   {if $order_invoice->getRestPaid()}
   <tr style="line-height:5px;color:red;">
 <td style="text-align: right; font-weight: bold">{l s='Remaining Amount Due' pdf='true'}</td>
 <td style="width: 15%; text-align: right;">{displayPrice currency=$order->id_currency price=$order_invoice->getRestPaid()}</td>
   </tr>
   {/if}
  </table>
 </td>
</tr>
</table>
<!-- / PRODUCTS TAB -->
<div style="line-height: 1pt"> </div>
{$tax_tab}
{if isset($order_invoice->note) && $order_invoice->note}
<div style="line-height: 1pt"> </div>
<table style="width: 100%">
   <tr>
    <td style="width: 15%"></td>
    <td style="width: 85%">{$order_invoice->note|nl2br}</td>
   </tr>
</table>
{/if}
{if isset($HOOK_DISPLAY_PDF)}
<div style="line-height: 1pt"> </div>
<table style="width: 100%">
   <tr>
    <td style="width: 15%"></td>
    <td style="width: 85%">{$HOOK_DISPLAY_PDF}</td>
   </tr>
</table>
{/if}
</div>

Thank you for your help

Dan

Dh42 · November 26, 2012

Without seeing the actual page, it is going to be hard to tell you what to edit to fix it.

mytwocentimes · November 27, 2012

@papagino - I've been "hacking" on my invoice tpl file for a couple of weeks - WHAT are you trying to achieve ?

I'm no programmer, but maybe I can assist you

mytwocentimes · November 27, 2012

</td>

<td style="width: 85%; text-align: right">

<table style="width: 100%; font-size: 8pt;">

<tr style="line-height:4px;">

<td style="text-align: left; background-color: #4D4D4D; color: #FFF; padding-left: 10px; font-weight: bold; width: 45%">{l s='Product / Reference' pdf='true'}</td>



{if !$tax_excluded_display}

<td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 10%">{l s='Unit Price' pdf='true'} <br />{l s='(Tax Excl.)' pdf='true'}</td>

{/if}

<td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 10%">{l s='Unit Price' pdf='true'}</td>

<td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 10%">{l s='Discount' pdf='true'}</td>

<td style="background-color: #4D4D4D; color: #FFF; text-align: center; font-weight: bold; width: 10%">{l s='Qty' pdf='true'}</td>

<td style="background-color: #4D4D4D; color: #FFF; text-align: right; font-weight: bold; width: 15%">{l s='Total' pdf='true'}</td>

</tr>

One way to solve the problems is to CHANGE THE WAY your canadian dollars display (CAD$ takes lots of space)

Or adjust the WIDTH of the table columns (td) for the UNIT PRICE column - say from 10% to 13%. NOTE, you should REDUCE one of the other columns by the same amount so things add up to 85% (say the QTY column)

ALSO - you need to find the corresponding columns just below this section that have the table DETAILS. Make sure the columns match up in widths or you'll get funky results.

GOOD LUCK

papagino · November 28, 2012

Thanks guys, I will try your suggestions and let you know if I was successful...

Cheers

Dan
